NEEDLES FEATURES

ENOVA® - Developed with high performances 300 series stainless steel, for exclusive surgery

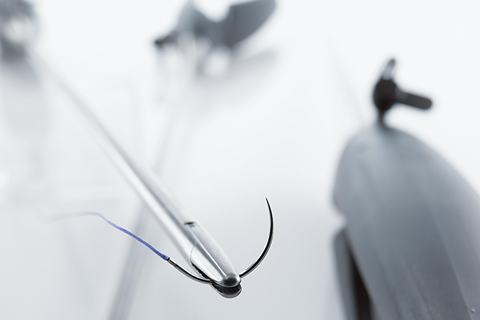

A suture usually comprises a thread and a single needle, which is the most conventional form. The needle is an essential component as it is the first part to pass through the tissues and conditions the success of the suturing, to a certain extent. The needle consists of 3 parts: point, body and curvature. Each of these features has to be carefully identified for the purpose of making the best choice, that is, for choosing the most appropriate needle for the patient and the type of surgery involved.

Suturex & Renodex offers a wide range of needles made from 300 stainless steel alloy: more than 2 500 types that are indication-specific and also 'tailor-made to surgeons' preferences.

All the ENOVA® needles offer the most advanced technology, leading to an excellent result due to:

Excellent tissue penetration
Sharpness after multiple stitches
High stability passing through tissue
High bending strength resistance
Excellent grip to the needle holder

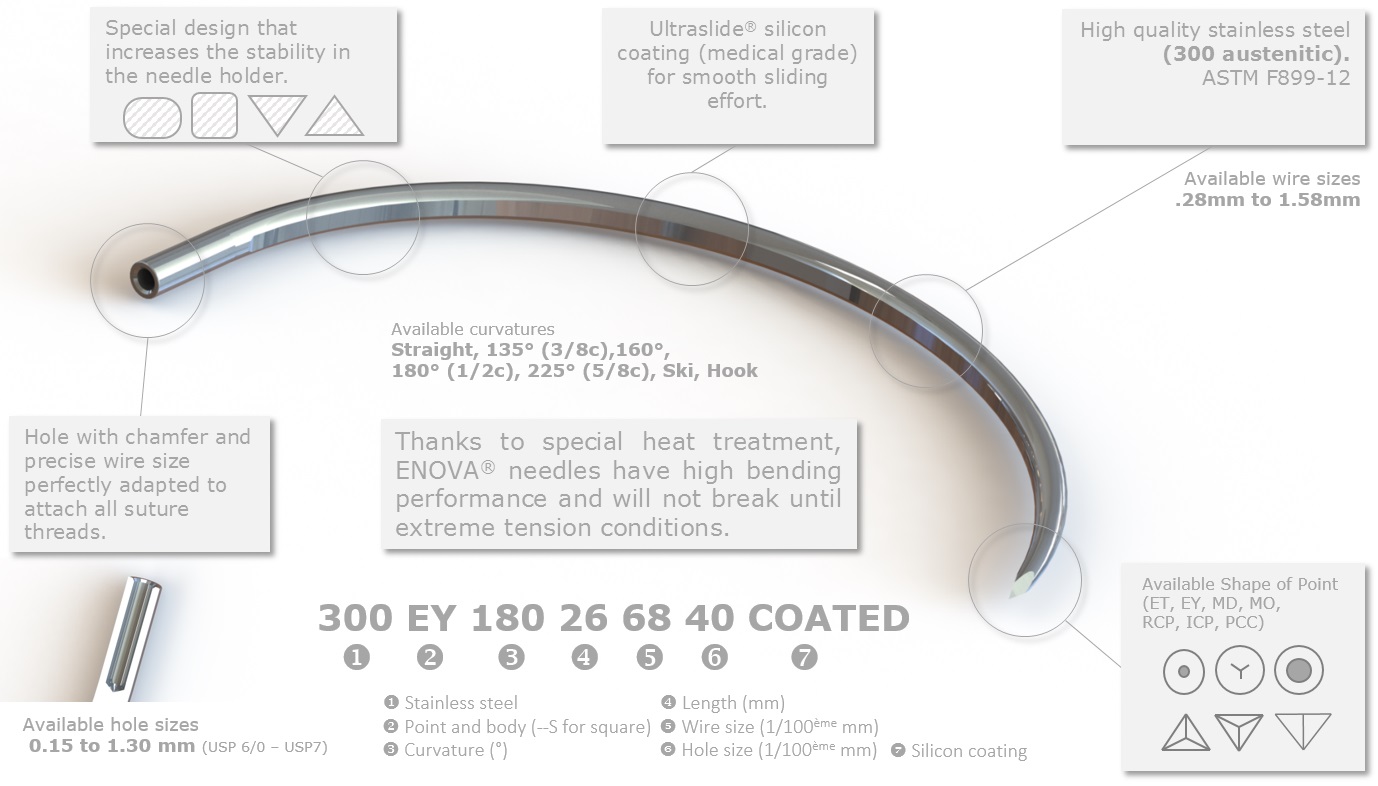

Needle code - how to read it

Needle code - How to read it

Ask us for new codes!

Needles availability range - Surgeries

Needles availability range - Surgeries

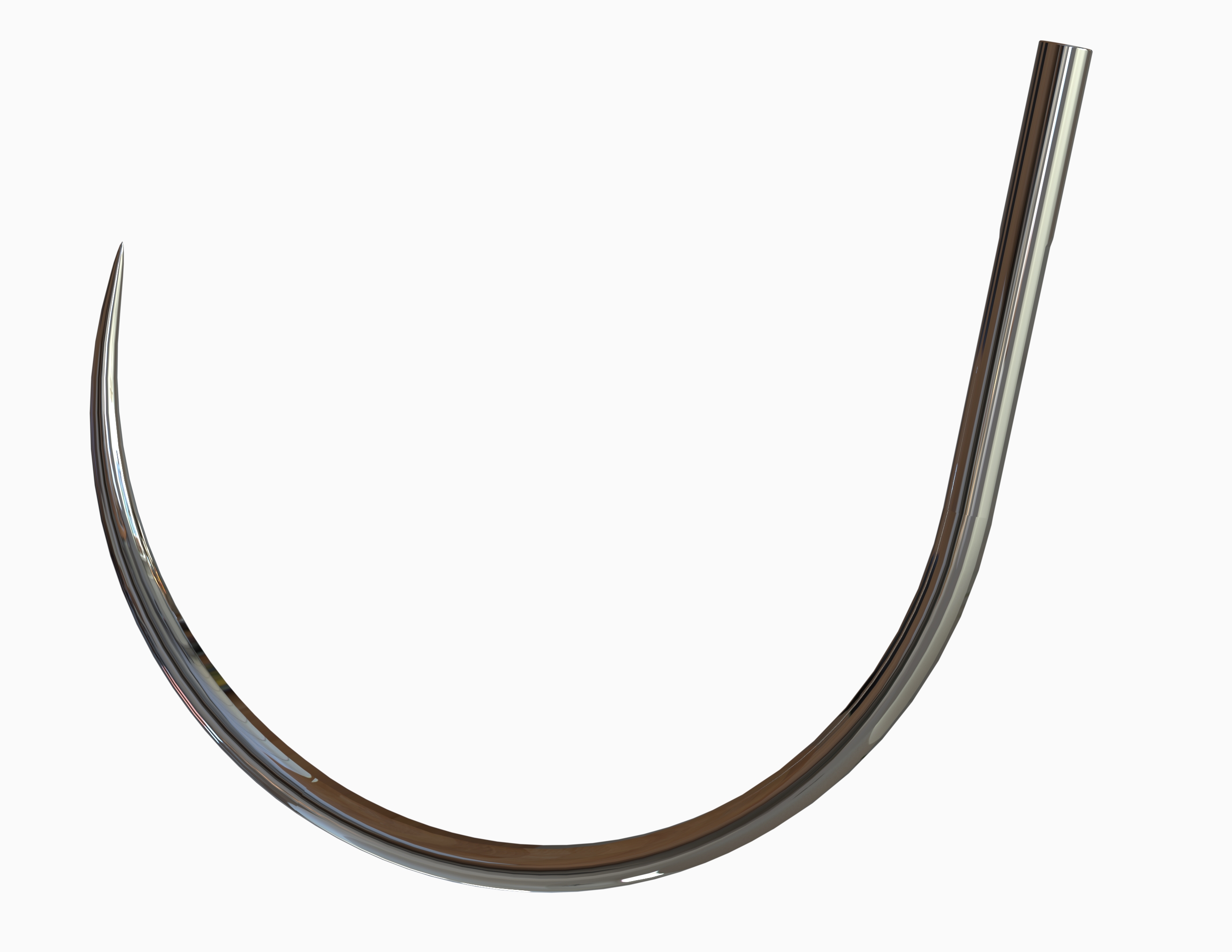

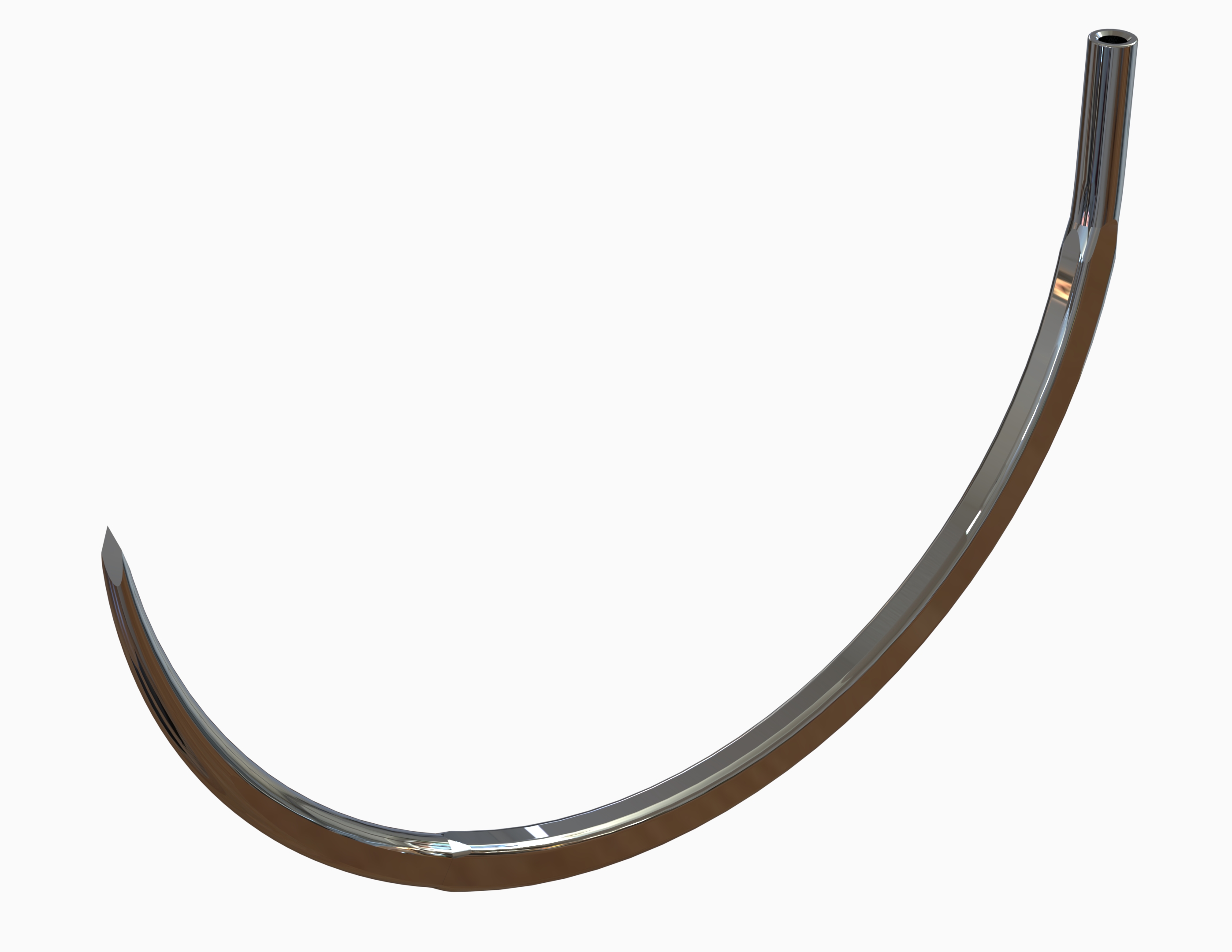

Taper point for soft tissue and flattened round body for better control.

Available in Square > 20% stronger than round body.

Available from length 10 to 90 mm and wire Ø 0.28 to 1.58 mm.

Typical applications/indications - Surgeries

  • Muscular layer
  • Cellular subcutaneous
  • Microsurgery (vessels, nerves)
  • Oral mucosa
  • Gastrointestinal tract
  • Urologic tract
  • Reproductive organs (male and female)
  • CV system (heart structures and vessels without atheroma)
  • Respiratory system
  • Endocrine surgery
  • Hepatobiliary surgery
  • Membranes (dura, peritoneum, pericardium)

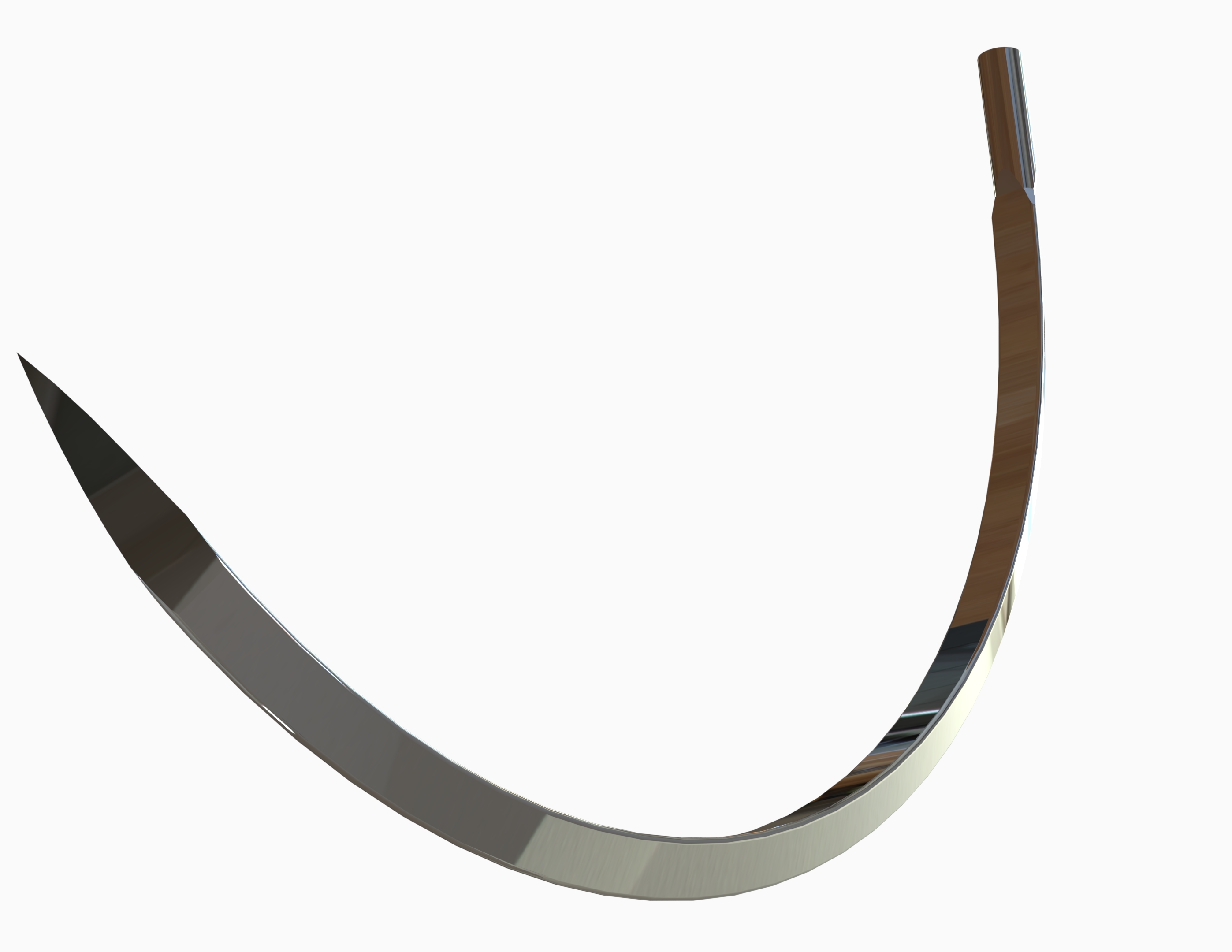

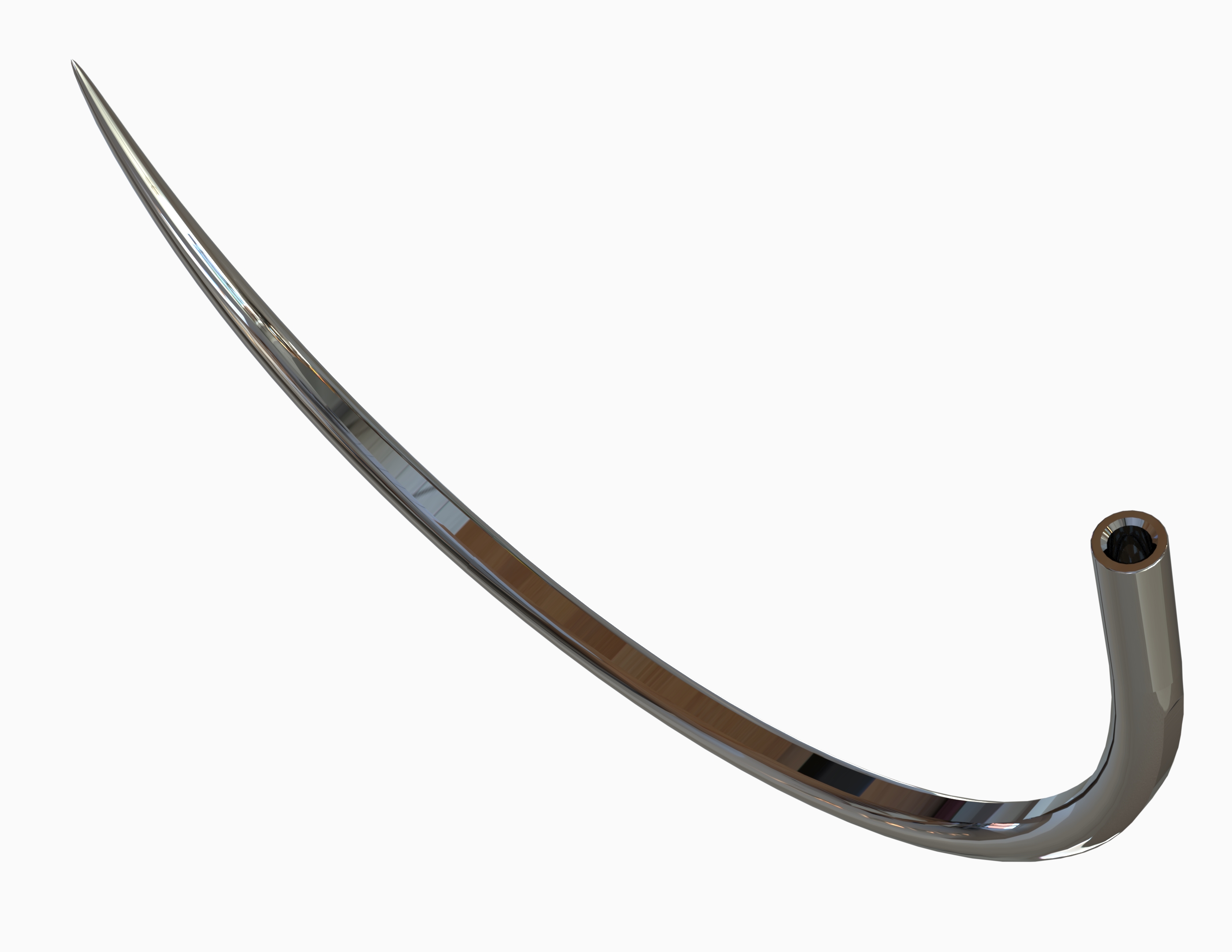

2-in-1 needle : cutting tip and flattened round body for tough tissue.

Available in Square > 20% stronger than round body.

Available from length 10 to 65 mm and wire Ø 0.28 to 1.58 mm.

Typical applications/indications - Surgeries

  • CV system (heart structures and vessels with atheroma)
  • Muscular layer
  • Aponeurosis
  • Ligaments
  • Tendon

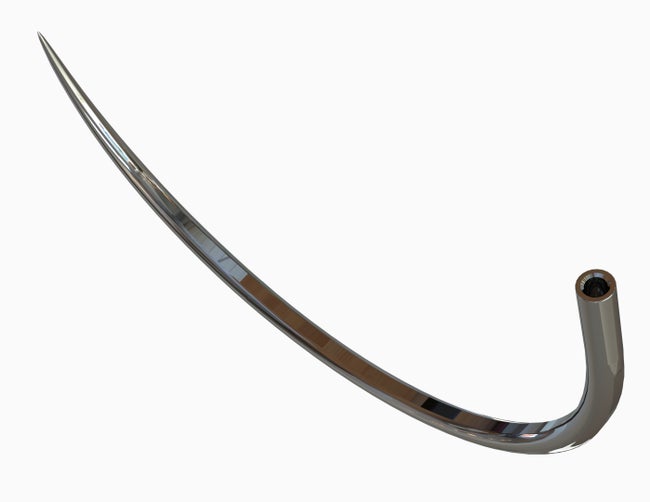

Designed to ensure superior penetration: 2 sides sharpened thin point offering increased sharpness pass after pass.

Available from length 10 to 45 mm and wire Ø 0.33 to 0.78 mm.

Typical applications/indications - Surgeries

  • Skin (dermal and intradermic)
  • Tendon (intra and peritendinous suture)

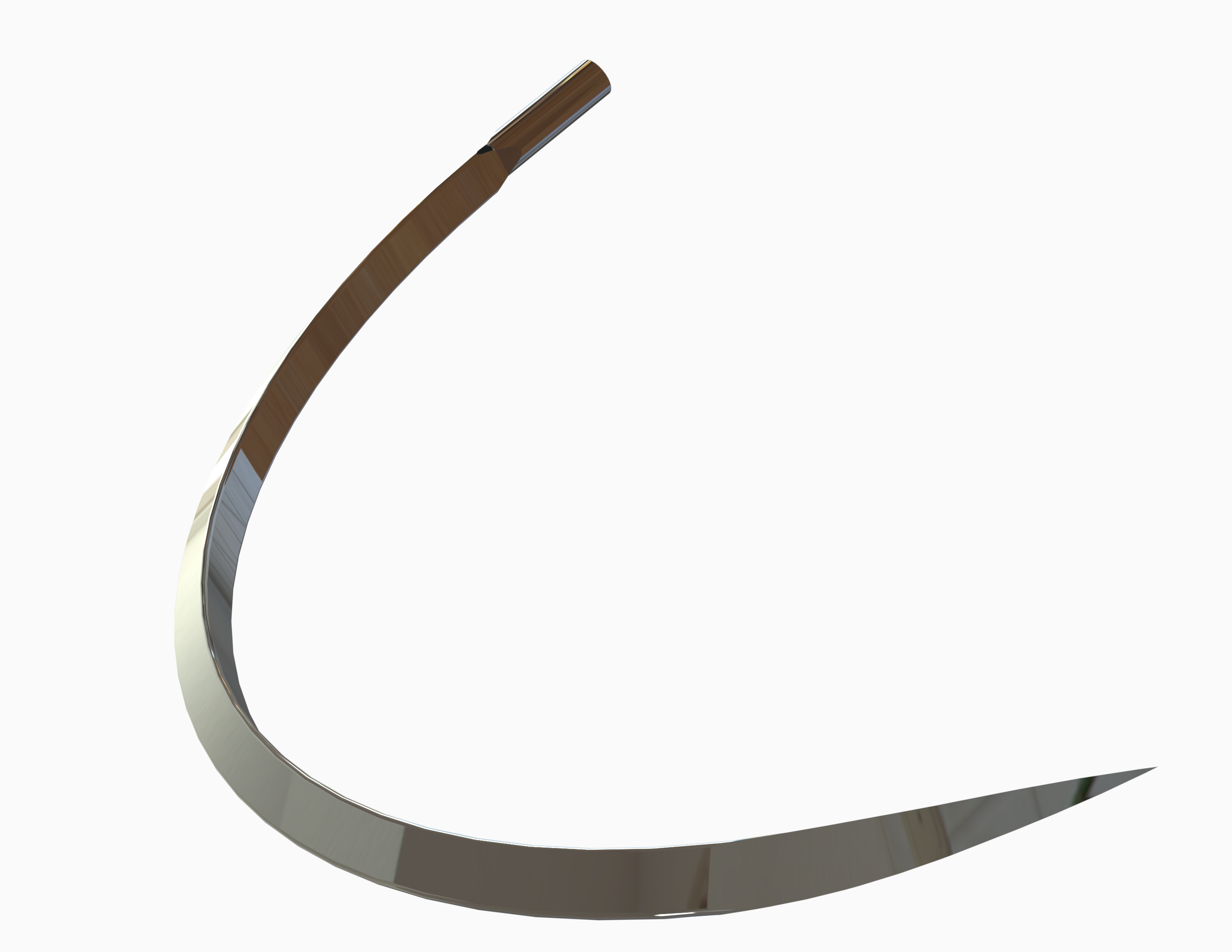

3 cutting edges, with the third on outside curve for RCP and on inside curve for ICP, and with triangle body for tough tissue.

Available from length 10 to 90 mm and wire Ø 0.33 to 1.58 mm.

Available in straight (SCP)

Typical applications/indications - Surgeries

  • Skin (dermal and intradermic)
  • Tendon (intra and periteninous suture)
  • Muscular layer
  • Aponeurosis
  • Ligaments

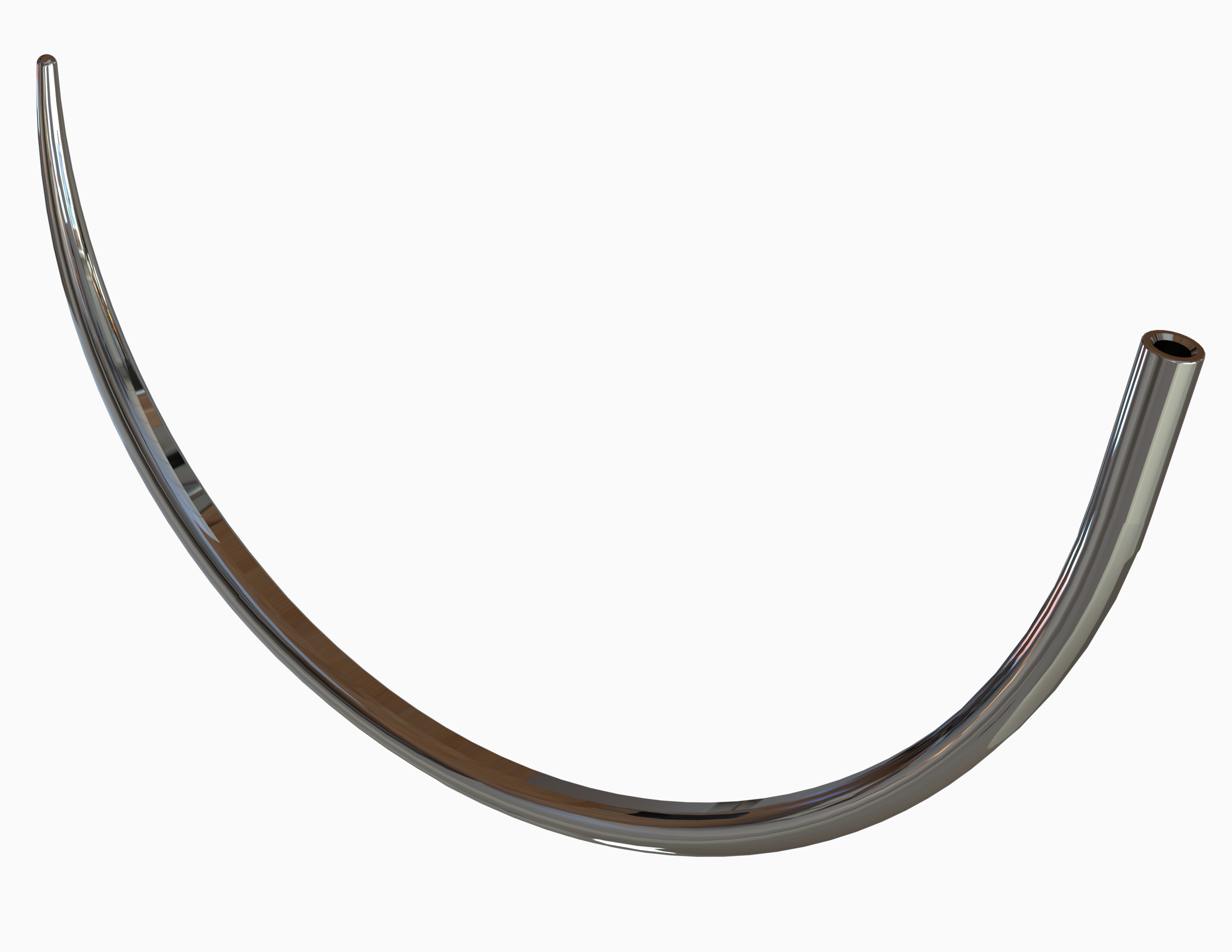

Blunt point and Ball point needles can literally dissect friable tissue rather than cutting it.

Available from length 26 to 90 mm and wire Ø 0.73 to 1.58 mm.

Typical applications/indications - Surgeries

  • Blunt dissection trough friable tissue
  • Parenchymal organs
  • Sternum (peristernal)
  • Muscular layer (fascia and aponeurosis)

Ski and hook for endoscopic and coelioscopic surgeries.

Available length from 20 to 90 mm and wire Ø 0.48 to 1.58 mm.

Ski 45°, 75° and 90° - Hook 180°

Available in Taper Cutting (EYK – EYH) and Cutting (RCK)

Typical applications/indications - Surgeries

  • Endoscopic
  • Cavities surgery

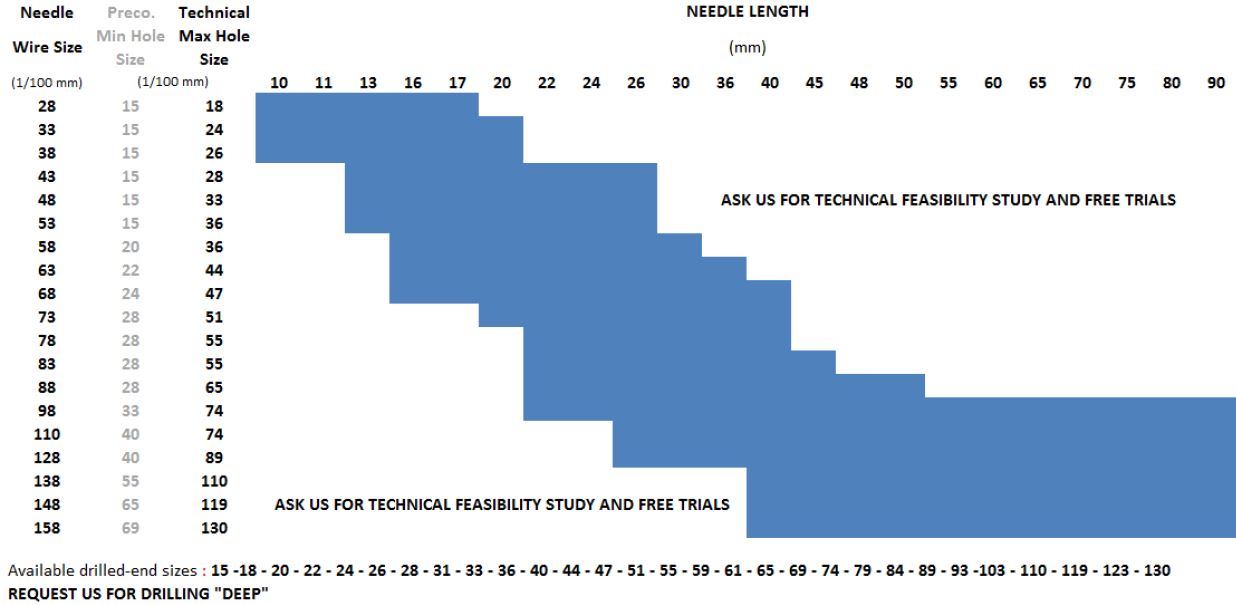

Wire and Hole diameters

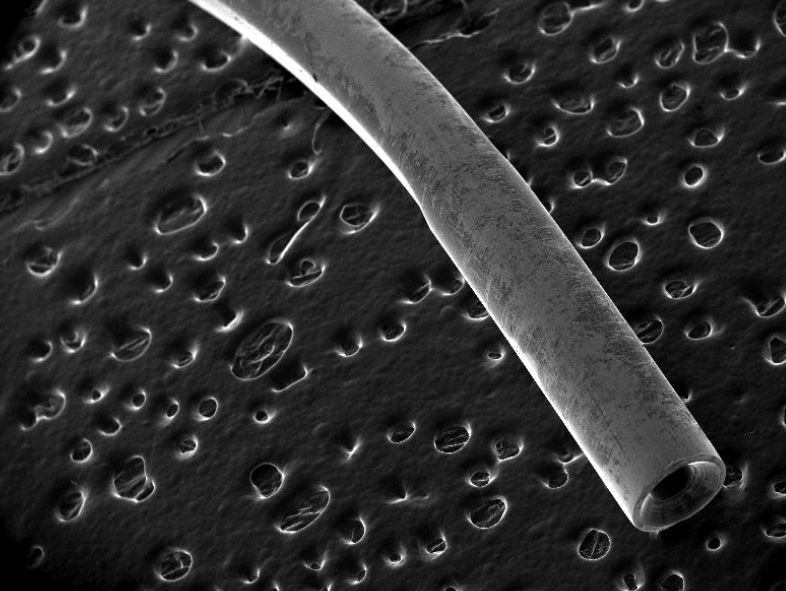

Wire and Hole diameters - Needle attachment

Our needles are available in wire size from 0.28 to 1.58 mm and with hole size from 0.15 to 1.30 mm (USP 6/0 to USP 7).

Hole with chamfer and precise wire size perfectly adapted to  attach all suture threads.

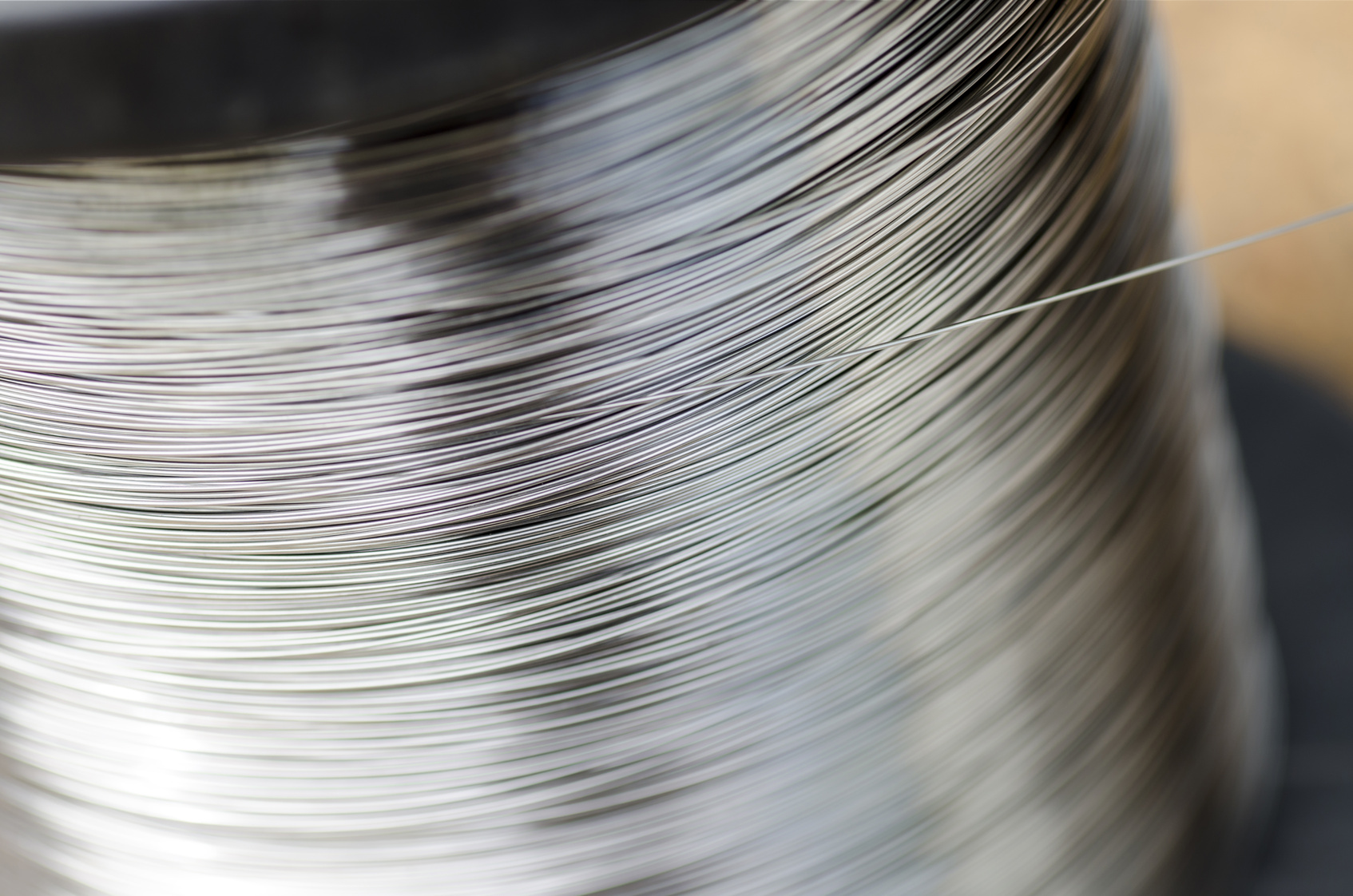

Material - ENOVA® 300

Material

High bending strength and ductility provided by high performance stainless steel  ENOVA® 300.

To achieve the perfect adequacy between high tensile strength and ductility, a perfect knowledge of the raw material elaboration linked to the specific know-how in heat treatment of the needle is required.

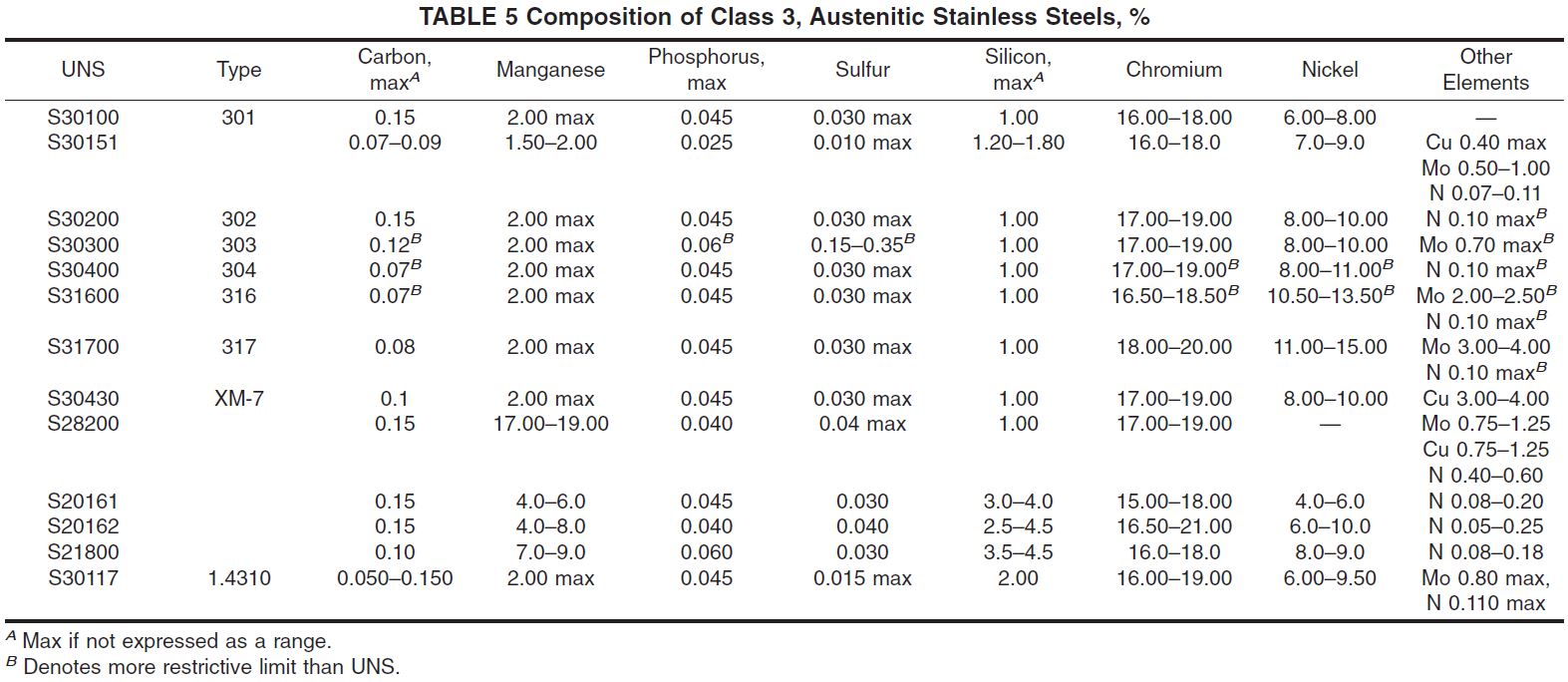

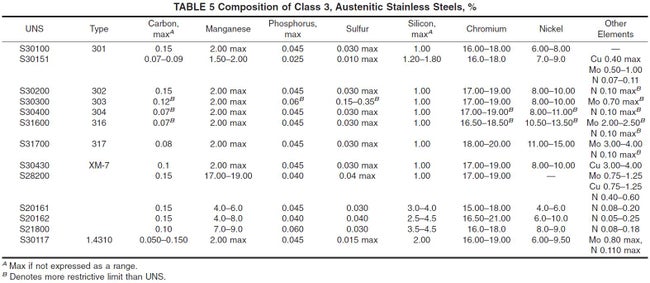

We certifie that needle manufactured in  ENOVA® 300 (UNS S301, S302, S304) complies with ASTM  F899-12, Class 3, Austenitic Stainless Steel.

Surface treatment

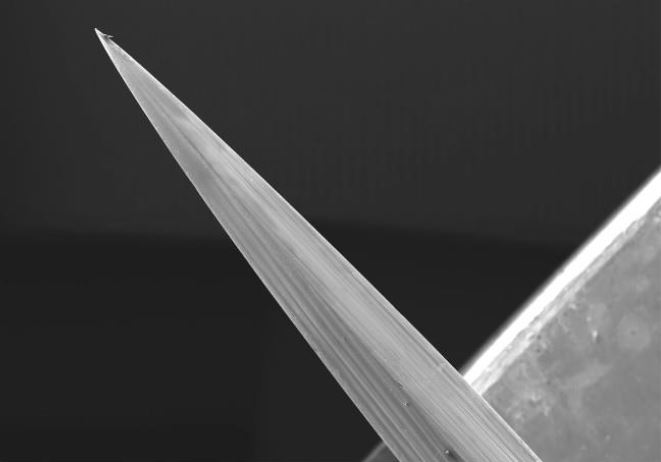

Silicon Coating - Medical Grade

Needle is coated with our superior silicone coating technology, ensuring high penetration performance.
